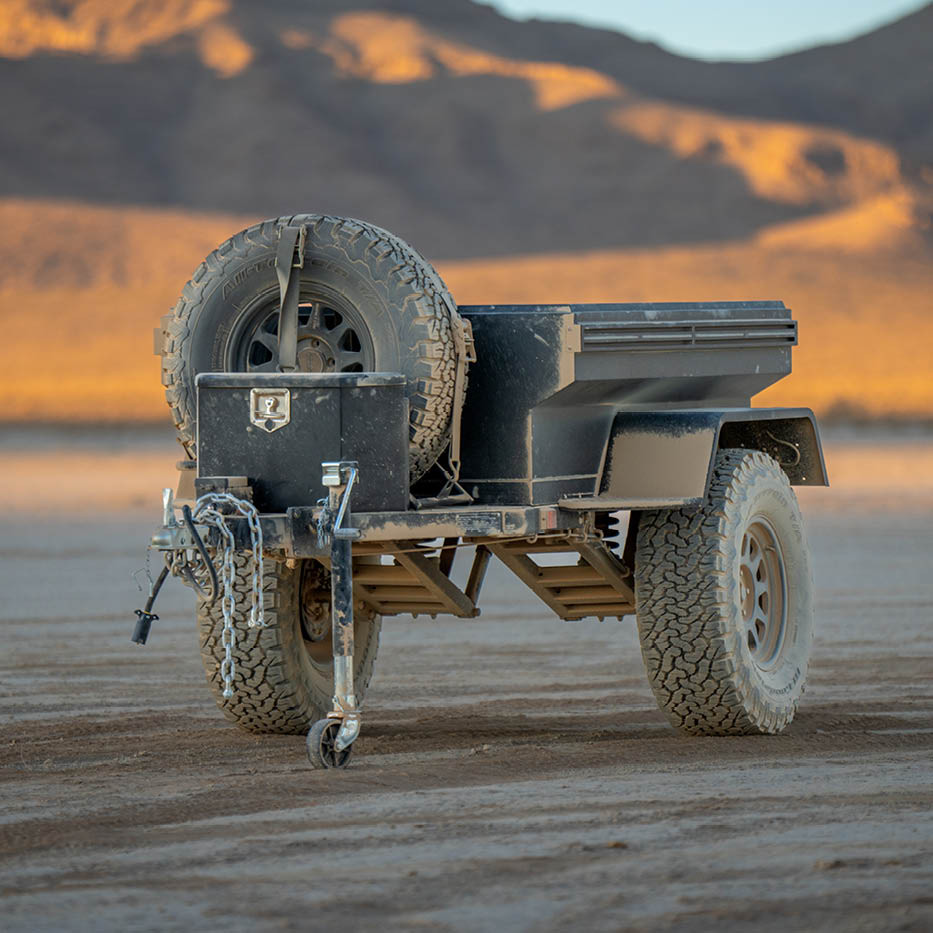

Introducing the all-new Overland Vehicle Systems Off Road Trailer - With Full Articulating Suspension: a true embodiment of versatility, durability, and innovation. Born from the inspiration of military-style trailers, our modernized creation is engineered to conquer the most demanding off-road terrains while seamlessly transitioning into a utility trailer, a motorcycle trailer, or a weekend getaway companion for any outdoor adventure.
At the heart of this off-road marvel is alloy steel construction, fortified further with an electrostatic plated and military-grade two-stage powder coating finish. It's not just rugged; it's a work of art in durability. The underside has been Rhino Coated, providing unparalleled protection against the harshest conditions Mother Nature can muster.
One of its standout features is the ability to accommodate up to a 37" tire, making it well-equipped for any off-road challenge. With a spare tire mount and a hand brake for added convenience, you'll be ready for whatever the trail throws your way.
The inclusion of a 2" standard hitch coupler and crossbars offers limitless possibilities. Mount a rooftop tent, bikes, or any other gear you require, transforming your outdoor adventures into unforgettable experiences. The 7-pin wiring harness, designed to seamlessly integrate with your vehicle's wiring, includes an electric brake system, ensuring safety and control, even when navigating steep descents.
We take pride in the attention to detail, using marine-grade stainless steel hardware throughout the trailer. This guarantees longevity and corrosion resistance, even in the most challenging environments.
For added convenience, consider our optional solid tonneau cover to keep prying eyes at bay, or the storage box on the tongue to stow away your gear securely.
The Overland Vehicle Systems Off-Road Trailer is not just a trailer; it's a rugged companion built to enhance your outdoor lifestyle. With this trailer in tow, your adventures will know no bounds. Welcome to a new era of off-roading, where capability meets versatility, and the possibilities are endless.
Features
- Integrated Breakaway System for Failsafe Safety
- Manual Parking Brake for Roll Control On Any Terrain
- 2" Front Receiver Accommodates Ball Coupler, Articulating Hitch, or Pintle Hook
- Removable Heavy-Duty Jockey Wheel and Tongue Jack
- Heavy-Duty Spring Pull Latch for Tailgate
- Independent Coil Sprung Trailing Arms with Dual Shocks and Limiting Straps
- XD Coating On Bed and Underside
- Wheels and Tires Included
- Manual Parking Brake with Electric 10" Drum Brakes
- DOT Tail Light/Brake Light and Side Markers
- 7-Pin Wiring Harness Designed to Integrate w/ Vehicle Wiring
- 7" of Travel Provides Better Off-Road Performance
- Steel Construction
- Marine-Grade 304 Stainless Steel Hardware
- Electrostatic Plated and Military-Grade Two-Stage Black Powder Coating Finish
- Quality Backed Warranty
- At Lowest Suspension, Ground Clearance is up to 33.75" with 37" Tires.
- 11' Turning Radius
Specifications
- Packaged Trailer Weight: 1302 LBS.
- Cargo Weight Capacity: 2004 LBS.
- Rear Hitch Tongue Capacity: 200 LBS.
- Tire Sizes: 265/70/17
- Upright Weight Capacity Static: 800 LBS.
- Upright Weight Capacity Dynamic: 250 LBS
- Tailgate Weight Capacity: 150 LBS.
- 5x5 Bolt Pattern SKU: 70100010
- 5x5 Bolt Pattern UPC Code: 810038736280
- 6x5.5 Bolt Pattern SKU: 70100030
- 6x5.5 Bolt Pattern UPC Code: 810161450442
Component Weights
- Tent Upright Post Weight: 85.09 lbs.
- Tongue Cargo Box Weight: 33.28 lbs.
- Spare Tire Carrier Weight: 9.47 lbs.
- Support Jack (Each): 16.09 lbs.
- Support Jacks (Pair): 32.18 lbs.

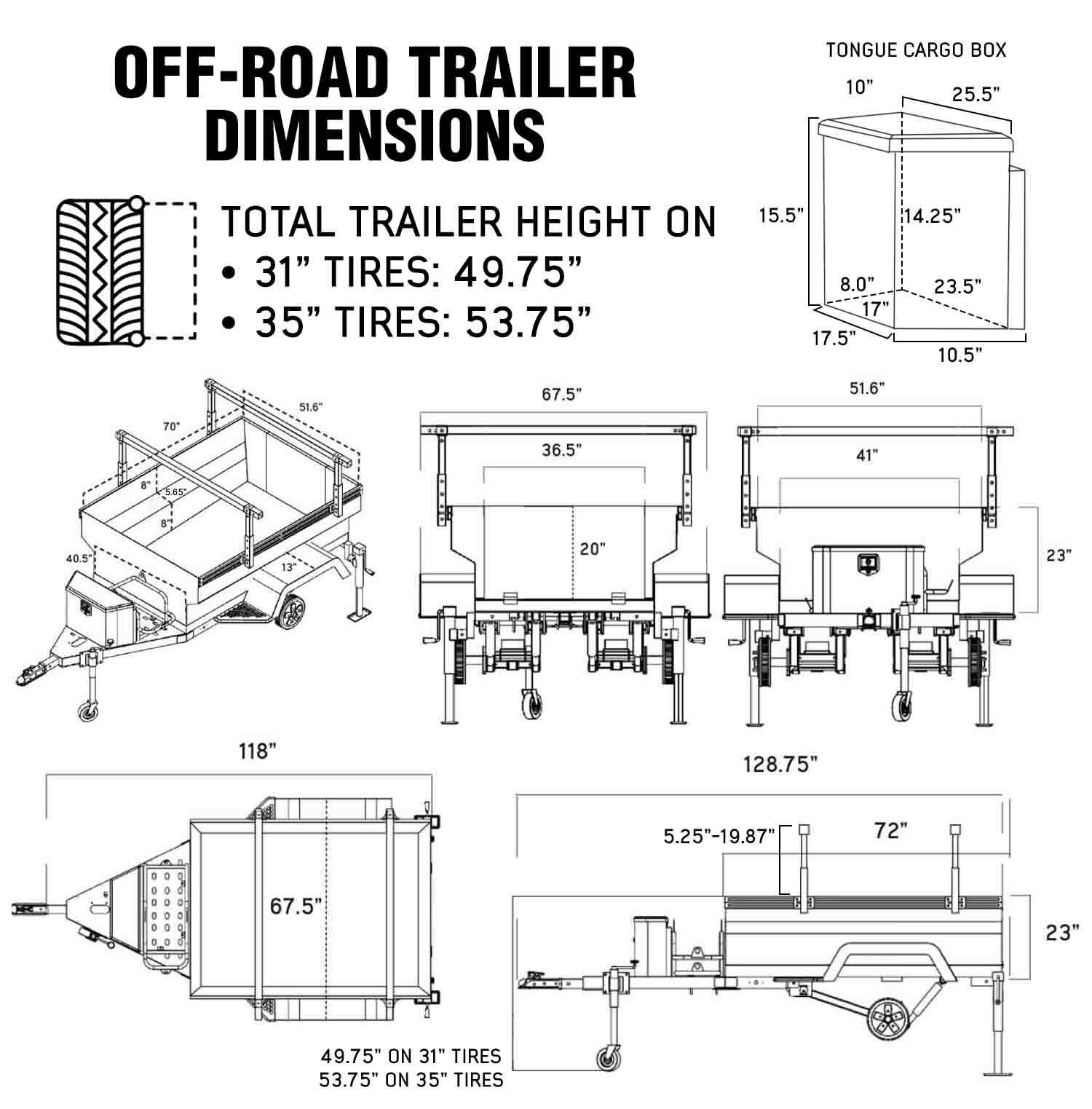

Dimensions:
-
- Shipping Weight:
- 1,302.00 LBS
-
- Shipping Width:
- (in)
-
- Availability
- Free LTL Shipping utilizing a Shipping carrier with Lift Gate on their delivery truck. Usually ships within 24 hours.
