Keep your air line organized, tangle-free, and ready for action with the ARK Air Reel Kit - 39 Foot Hose with Mounting Bracket. The retractable design saves setup time and extends hose life. Perfect for pairing with onboard air or compressors during tire fills and tool use.

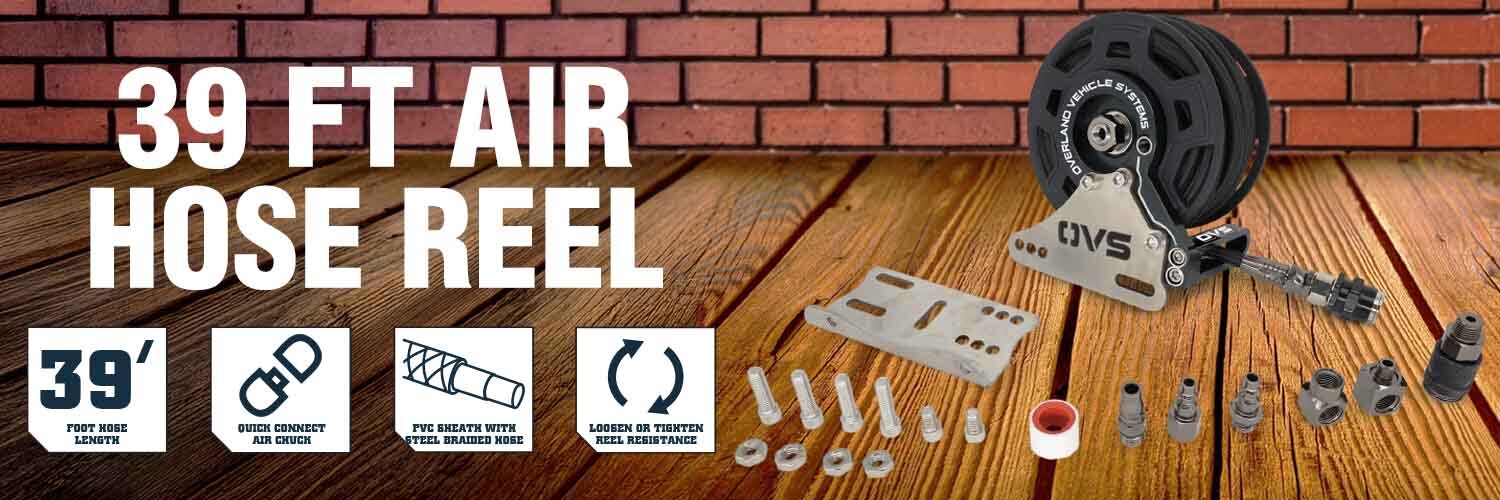

ARK Air Reel Kit - 39 Foot Hose with Mounting Bracket
FEATURES & BENEFITS

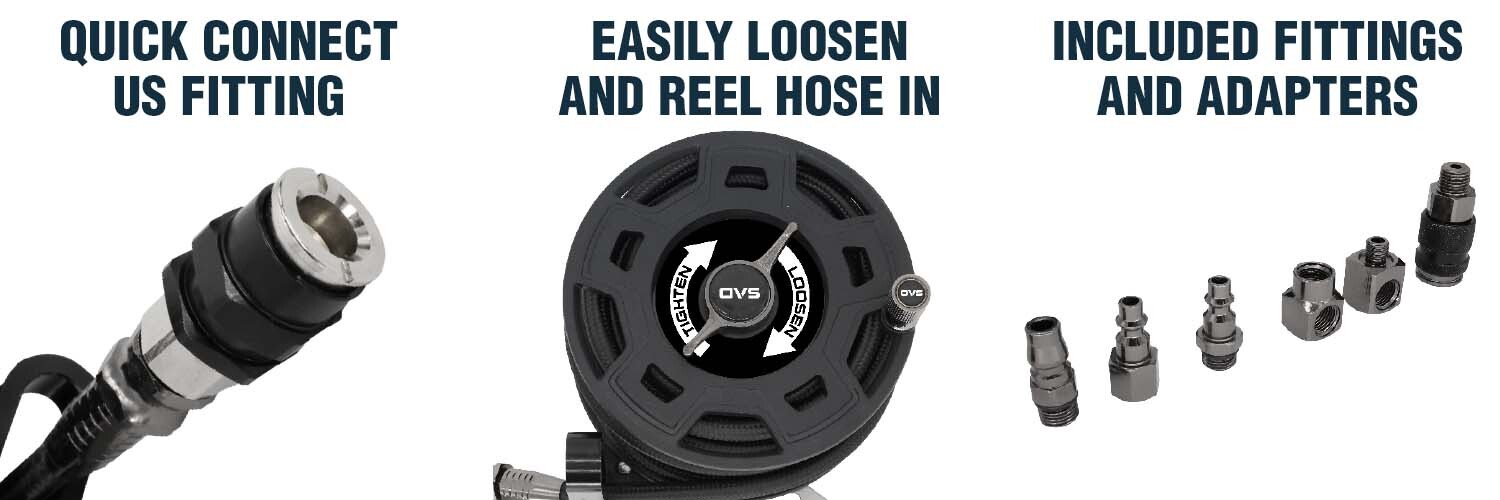

- Retractable Design Keeps Hoses Tangle-Free
- Keeps Gear Organized and Workspace Safe
- Extended Stainless Steel Braided Hose with PVC Sheath and Dual Swiveljoints
- Heavy-Duty Spring for Smooth Retraction
- Quick Connect US Standard Fittings Works with EGOI Digital Air Compressors
- High-Pressure Rated for Off-Road Compressors
- Compact Design Maximizes Storage Efficiency
- Maximum Supply Pressure of 350 PSI
- +/-1 PSI @ 25-75 PSI
- Mounting Options: Wall, Rack, Crossbar, Molle Panel or Vehicle
DEEP DIVE
- Compressor Lead Hose: WP 28 Bar (406 PSI)
- Compressor Lead Hose: BP 112 Bar (1625 PSI)
- Reel Hose Line: Max 50 KGs / 711 PSI
- Reel Hose Line: Work Pressure Max 15 KGs / 213 PSI
- Air Reel Construction: 6061 Aluminum
- Hoses: Double Braided Sheath over Rubber Hose
- Fairlead: Aluminum
- Mounting Bracket: SUS 304
- Mounting Hardware SUS 304 Marine-Grade Stainless Steel
PRODUCT SPECIFICATIONS
Application Details:
- Part Number: 87-9905
- UPC Code: 810161452293
- Warranty: 2 Year Limited Warranty
DIMENSIONS
- Diameter: 6.5 inches.
- Width: 4 inches (Not Including Bracket)
-
- Shipping Weight:
- 15.00 LBS
-
- SKU:
- 87-9905
-
- Shipping Width:
- 8.00 (in)
-
- Part number:
- 87-9905
-
- shipping Height:
- 5.00 (in)
-
- UPC:
- 810161452293
-
- shipping Depth:
- 8.00 (in)
-
- Warranty
- 2 Year Limited Warranty
-
- Availability
- All products ship out same day when ordered before 3:30 Pacific Time. We ship FedEx, UPS and USPS in most cases and will provide tracking information as soon as it’s pulled and packed. You will get confirmation that the item has shipped.
