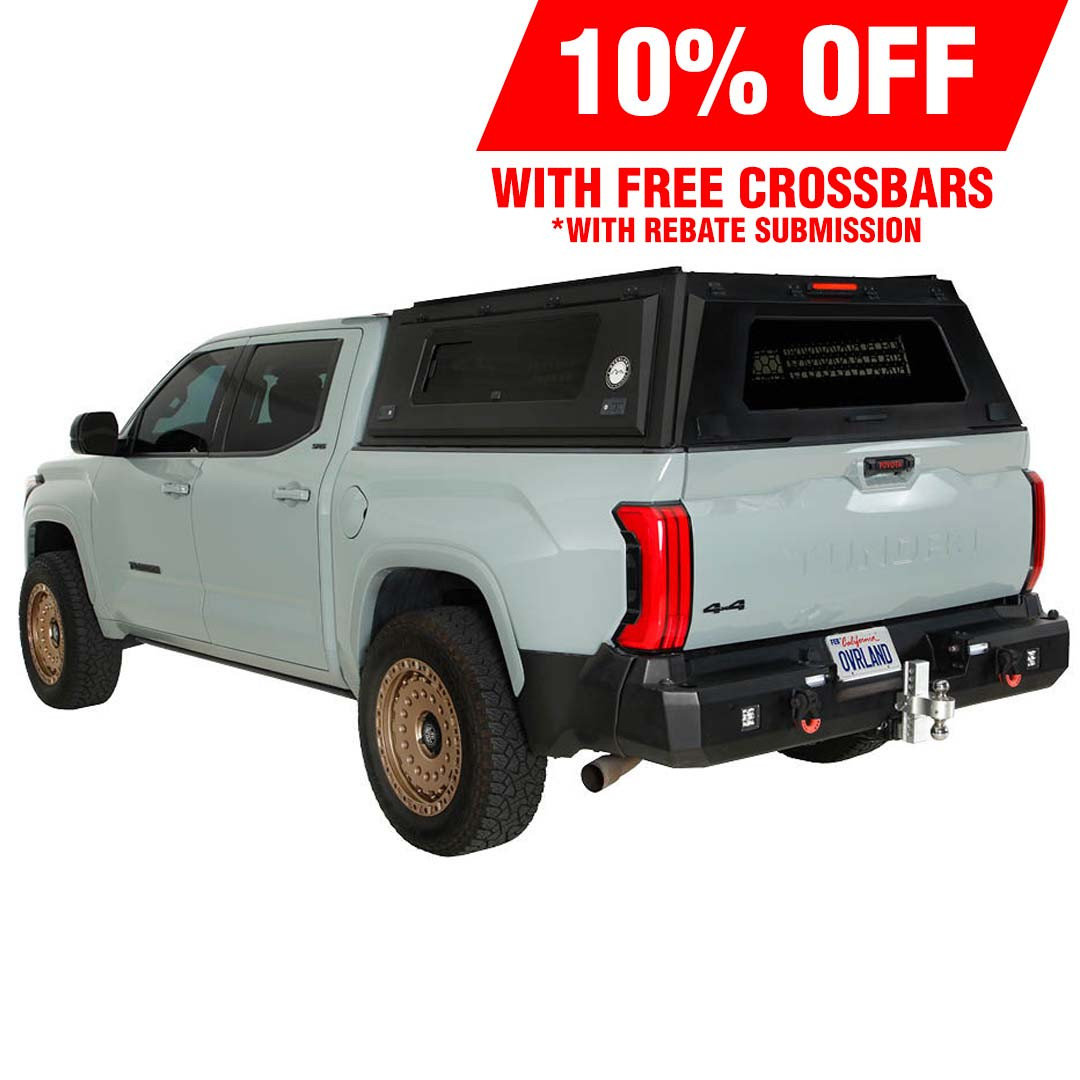

Expedition PRO+ Truck Cap with Full Windows & 3rd Brake Light
Introducing The Ultimate Truck Topper: The Expedition Truck Cap With Full Wing Doors. Elevate Your Adventures!
The Expedition Pro+ Truck Cap is a modular, marine-grade stainless steel overland truck cap featuring True Fit Technology, no-drill installation, full tempered-glass wing doors, integrated MOLLE storage channels, waterproof seals, roof rail compatibility, security cages, sliding windows, and a limited lifetime warranty. Designed for overlanding, work trucks, camping, rooftop tents, and secure gear storage, it combines durability, accessibility, weather protection, and cargo management in a premium truck topper platform.
FEATURES AND BENEFITS
| CATEGORY | FEATURE | BENEFIT |
| | Marine-Grade Stainless Steel | Corrosion-resistant stainless steel construction engineered for extreme environments |

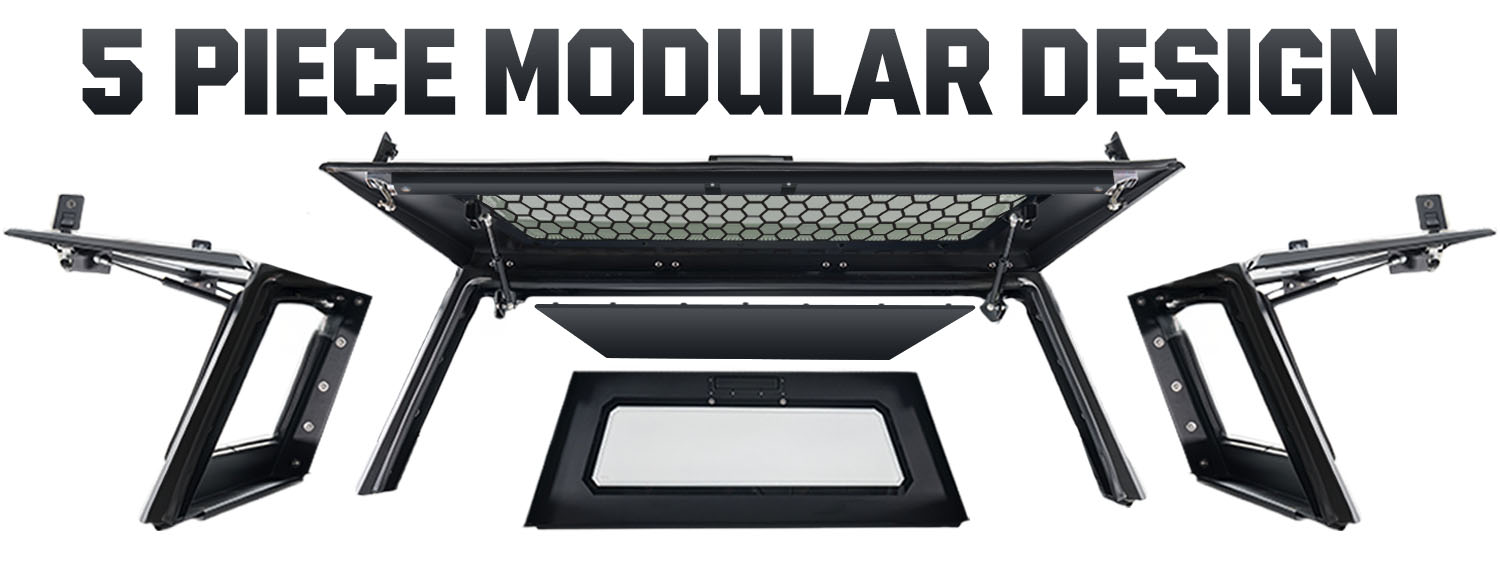

| Construction | 5-Piece Modular Design | Ships and assembles in multiple sections for easier transport and installation |

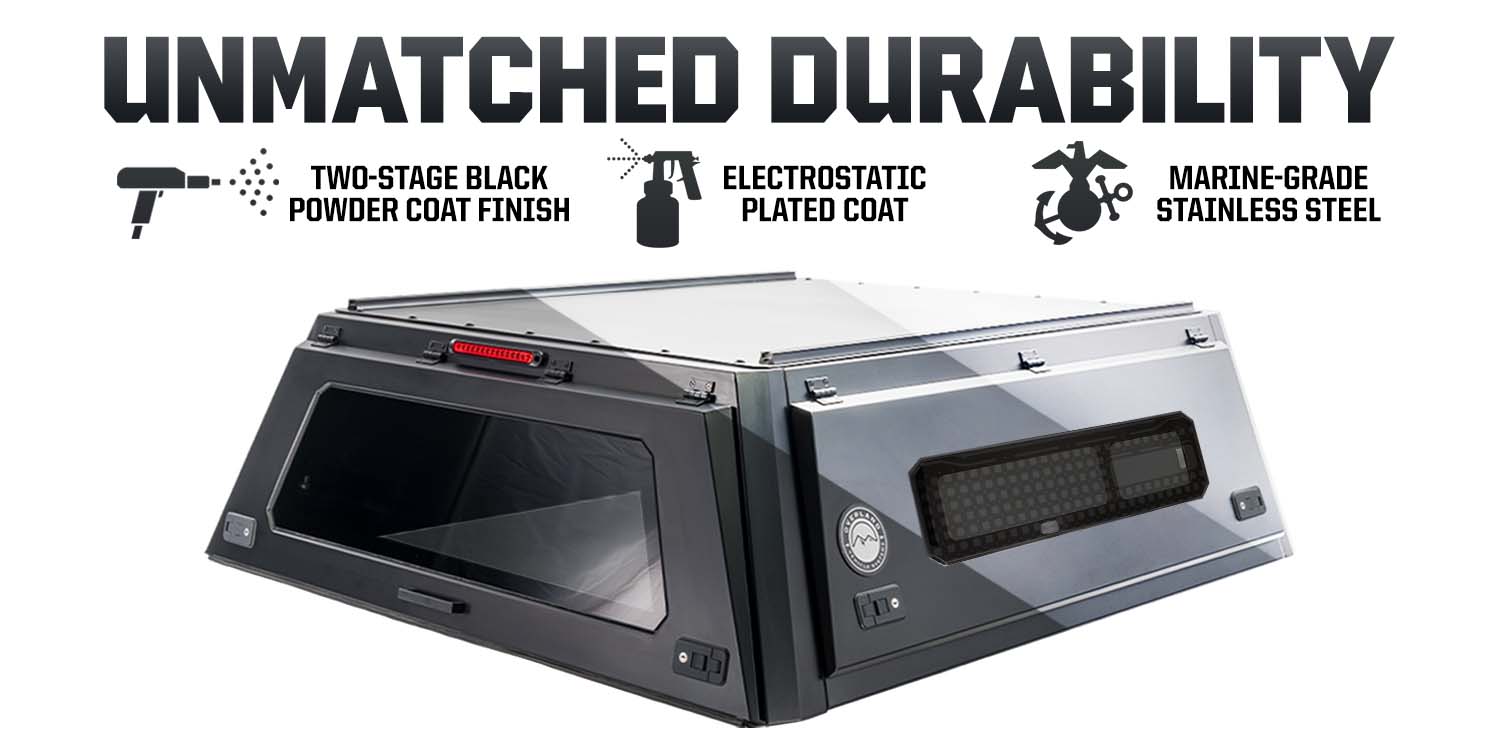

| Finish | Textured Powder Coat | E-coat and two-stage black powder coat protection |
| Fitment | True-Fit Technology | Vehicle-specific designed engineered for each truck application |
| Installation | No-Drill Clamping System | Secure mounting system required no permanent modifications |

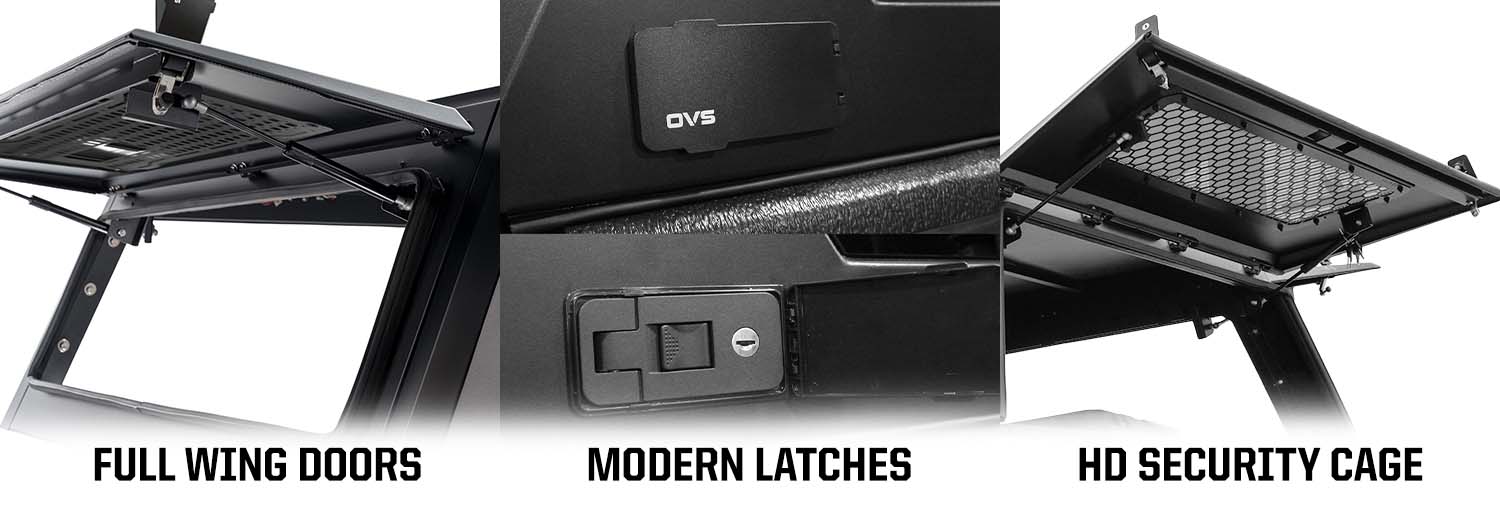

| Accessibility | Full Window Wing Doors | Full-side opening access with tempered glass windows |

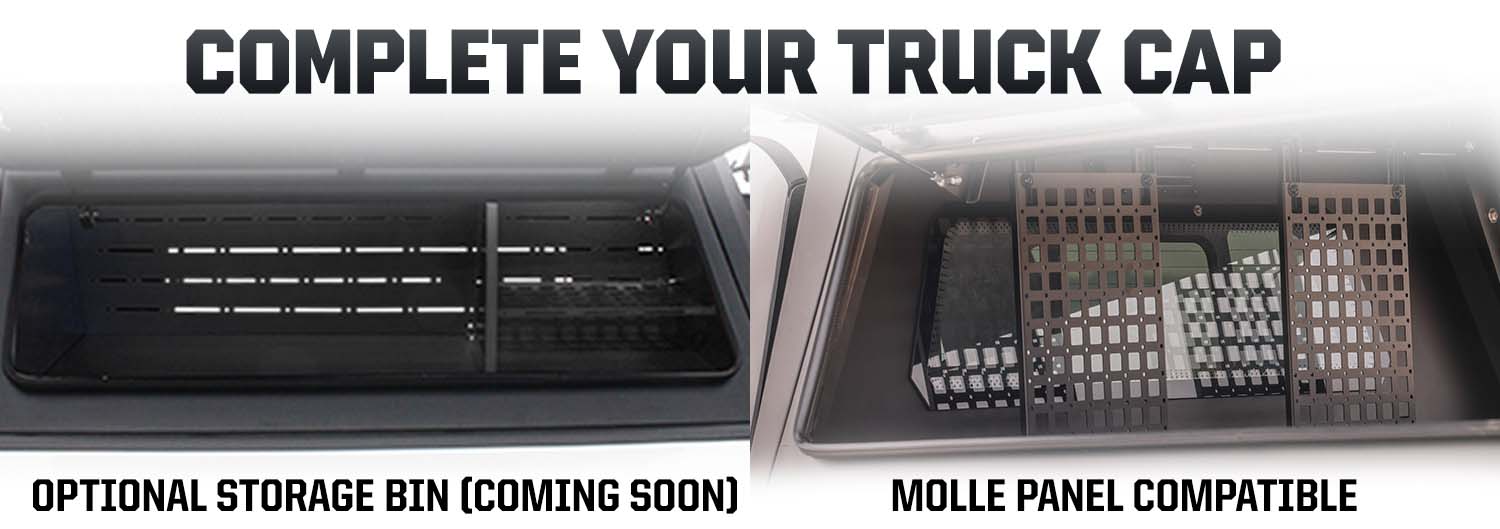

| Organization | MOLLE-PAL Compatible Channels | Integrated gear mounting system inside wing doors |
| Weather Protection | Waterproof Sealing System | Multi-point sealing surfaces around all openings |
| Ventilation | Sliding Side Windows | Tempered glass windows with integrated sliding vents |
| Ventilation | Pressure Air Vent | Built-in passive airflow management |
| Security | Heavy-Duty Latches | Lockable latch system on access points |
| Security | Rear Security Cage | Reinforced rear window protection system |
| Security | MOLLE Window Cage | Stainless security cage |
| Glass | Tempered Safety Glass | Automotive-grade tempered glass |
| Access | High-Pressure Gas Struts | Gas-assisted opening system for wing doors |
| Durability | Heavy-Duty Hinges | Reinforced hinge construction |

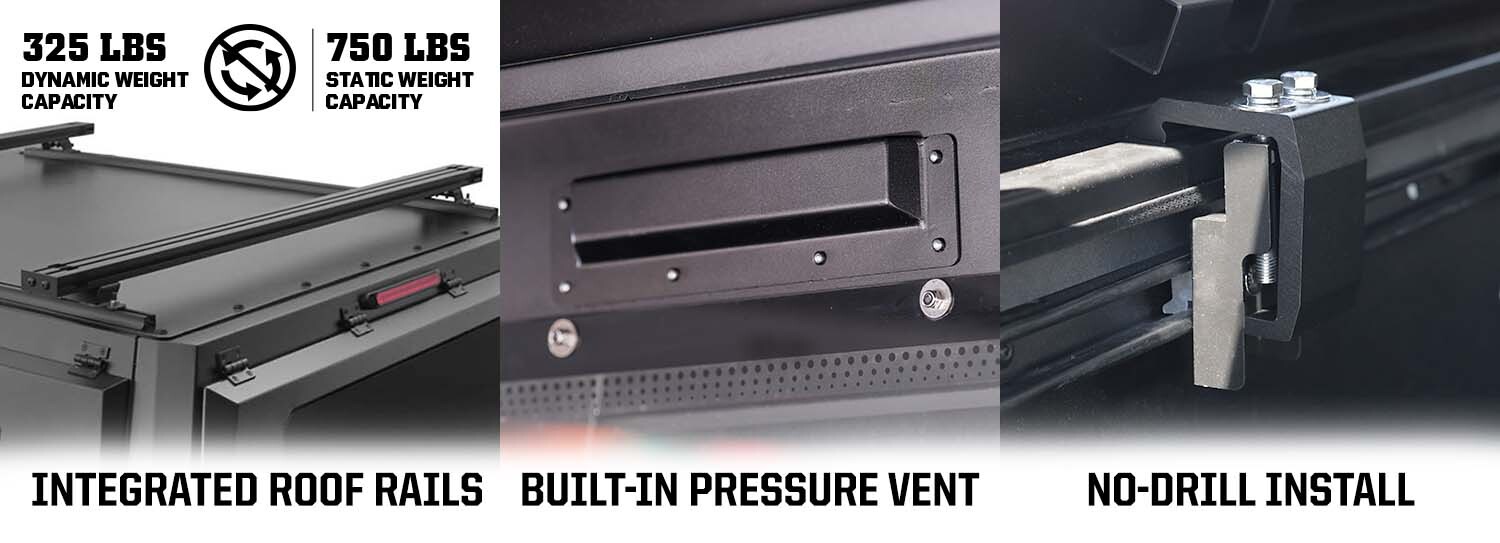

| Cargo Capacity | Integrated Roof Rails | Can hold 750 lb static and 325 lb dynamic weight |
| Cargo Capacity | Optional Crossbars | Compatible crossbar mounting system |

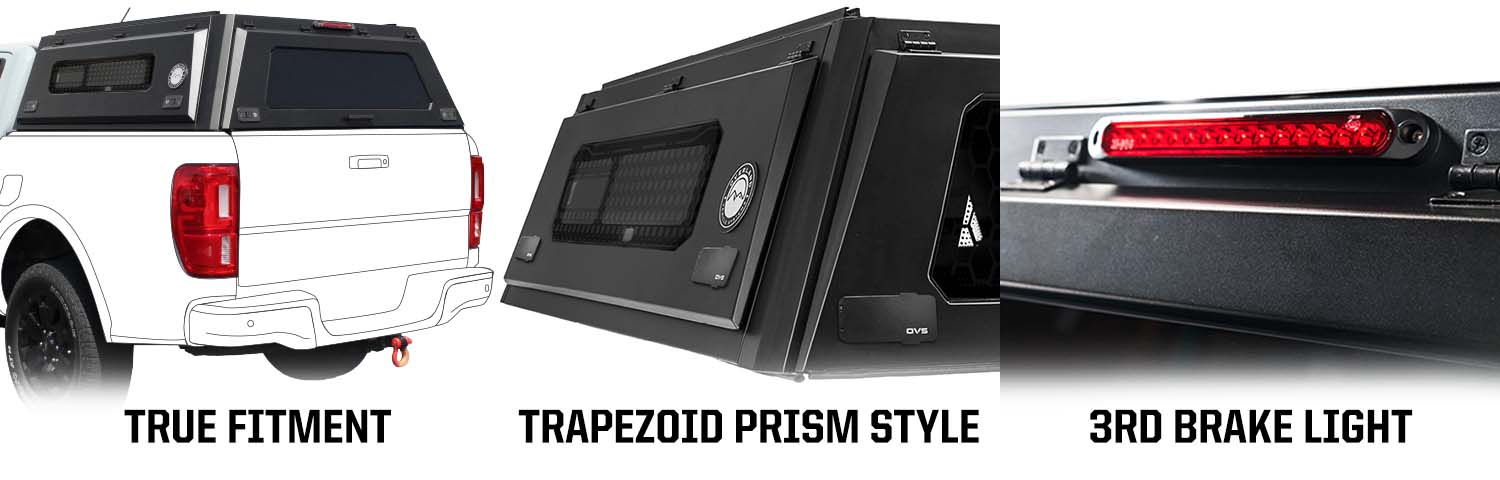

| Safety | 3rd Brake Light | Elevated rear brake illumination |
| Warranty | Limited Lifetime | Long-term structural warranty coverage |
DEEP DIVE
The Overland Vehicle Systems Expedition Truck Cap is a heavy-duty modular truck topper engineered for overland travel, secure gear storage, and extreme durability. Unlike many truck caps built from aluminum, the OVS cap is constructed from marine-grade stainless steel, delivering superior strength, corrosion resistance, and long-term reliability in harsh environments. The cap utilizes a 5-piece modular construction, allowing for easier transportation, assembly, and installation while maintaining exceptional structural rigidity. Its True Fit Technology ensures vehicle-specific integration for a clean, factory-style appearance. Full open-assist wing doors provide wide access to gear and include integrated Molle-Pal channels, allowing users to mount tools, recovery equipment, and overland accessories directly to the interior panels. A no-drill clamping system enables straightforward installation without modifying the truck bed, preserving vehicle integrity while ensuring a secure fit. The cap features tempered safety glass, heavy-duty latches, solid hinges, and high-pressure gas struts designed for consistent performance in demanding environments. Waterproof seals protect cargo from the elements, while an integrated pressure air vent improves airflow and reduces condensation. Finished with a durable e-coat and two-stage textured black powder coat, the Expedition Truck Cap is engineered to withstand years of exposure to weather, trail conditions, and heavy use. Integrated roof rails and optional crossbars provide mounting capability for rooftop tents, cargo boxes, bikes, kayaks, and expedition gear. Every Expedition Truck Cap is backed by a Limited Lifetime Warranty, reinforcing its role as a long-term expedition solution.
Why Choose The Expedition Truck Cap Over Other Truck Caps?
Compare the Expedition Truck Cap against traditional fiberglass truck caps, aluminum truck toppers, and premium overland truck caps. Learn how marine-grade stainless steel construction, modular design, full wing access doors, integrated MOLLE-PAL organization, rooftop tent compatibility, weather-resistant sealing, and expedition-ready durability make the Expedition Pro a leading choice for overlanding, truck camping, work trucks, and adventure travel.
| Construction & Finish | Functionality | Installation | Warranty | Applications |
| Marine-Grade Stainless Steel Construction with an Electrostatic Plated Coat that Protects the Finish From Corrosion | Mount Roof Top Tents, Awnings, Basket Racks, Crossbars, and even upgrade to our Pass-Through RTT Camper Shell Combo. There are also optional lighting and sliding glass side panels. | Enjoy a simple 1-2 Hour No-Drill Installation | We stand by our product with a Limited Lifetime Warranty | Supports Mid-Size to Full-Size Trucks with Growing Expansion |
Durability & Construction
| Material | Thickest Material | E-Coat Corrosion Protection | Modular Construction | |
| OVS | Marine-Grade Stainless Steel Construction | 16 GA | Yes | Yes |
| Rival S | 3CR12 Ferritic Stainless Steel | 17 GA - 20 GA | No | 6 Piece |
| Rival R | Steel Frame with Aluminum Panels | 18 GA - 20 GA | No | 6 Piece |
| Rival W | Double Walled Aluminum | 18 GA | No | 5 Piece |
Functionality
| Side Glass Option | Sliding Side Windows | RTT Pass Through | LED Lighting | |
| OVS | Yes | Yes | Yes | Optional |
| Rival S | Yes | Yes | No | Optional |
| Rival R | No | No | No | No |
| Rival W | No | No | No | No |
Installation
| OVS | RIVAL S | RIVAL R | RIVAL W |
| | | | |
| 1-2 Hours | 3-5 Hours | 4-6 Hours | 2-4 Hours |
Warranty
| OVS | RIVAL S | RIVAL R | RIVAL W |
| | | | |
| Limited Lifetime Warranty | 3 Year Warranty | Limited Lifetime Warranty | 2-4 Hours |
FITMENT NOTES
GM Trucks Carbon Pro Trims/ NOT COMPATIBLE
Ram Trucks with RAMBOX trims/ NOT COMPATIBLE
Trim Levels w/ Spare Tire Mounts (Ram/Chevy), or other accessories that interfere with the Expedition installation would need to be removed prior to installation.
APPLICATION GUIDE
| PRO+ | PRO | YEAR | MAKE | MODEL | BED | PRO+ WEIGHT | PRO WEIGHT |
| 70200025 | 70100025 | 2024-2026 | Toyota | Tacoma | 5 ft | 207.67 lbs | 201.06 lbs |
| 70200028 | 70100028 | 2024-2026 | Toyota | Tacoma | 6 ft | 257.27 lbs | 257.27 lbs |
| 70200001 | 70100001 | 2016-2023 | Toyota | Tacoma | 5 ft | 229.28 lbs | 227.07 lbs |
| 70200026 | 70100026 | 2016-2023 | Toyota | Tacoma | 6 ft | TBA | 209.43 lbs |
| 70200002 | 70100002 | 2022-2026 | Toyota | Tundra | 5.5 ft | 262.12 lbs | 254.41 lbs |
| 70200040 | 70100040 | 2022-2026 | Toyota | Tundra | 6.5 ft | TBA | TBA |
| 70200021 | 70100021 | 2007-2021 | Toyota | Tundra | 5.5 ft | TBA | 260.14 lbs |
| 70200035 | 70100035 | 2016-2026 | Toyota | Hillux | 5 ft | TBA | TBA |
| 70200003 | 70100003 | 2020-2026 | Jeep | Gladiator | 5 ft | 247.35 lbs | 238.98 lbs |
| 70200004 | 70100004 | 2019-2026 | Ford | F-150 | 5.5 ft | 264.55 lbs | 256.83 lbs |
| 70200027 | 70100027 | 2019-2026 | Ford | F-150 | 6.5 ft | TBA | 222.00 lbs |
| 70200009 | 70100009 | 2023-2026 | Ford | F-250/F-350 | 6.8 ft | 332.89 lbs | 319.67 lbs |
| 70200020 | 70100020 | 2017-2022 | Ford | F-250/F-350 | 6.8 ft | 331.89 lbs | 318.67 lbs |
| 70200024 | 70100024 | 2024-2026 | Ford | Ranger | 5 ft | TBA | TBA |
| 70200006 | 70100006 | 2019-2023 | Ford | Ranger | 5 ft | 230.16 lbs | 224.65 lbs |
| 70200031 | 70100031 | 2022-2026 | Ford | Maverick | 4.5 ft | TBA | 122.35 lbs |
| 70200023 | 70100023 | 2023-2026 | GM | Colorado/Canyon | 5 ft | TBA | 208.99 lbs |
| 70200005 | 70100005 | 2015-2026 | GM | Colorado/Canyon | 5 ft | 215.17 lbs | 210.10 lbs |
| 70200008 | 70100008 | 2019-2026 | GM | 1500 | 5.8 ft | 261.24 lbs | 253.75 lbs |
| 70200038 | 70100038 | 2019-2026 | GM | 1500 | 6.6 ft | TBA | TBA |
| 70200029 | 70100029 | 2020-2026 | GM | 2500/3500 | 6.9 ft | TBA | TBA |
| 70200007 | 70100007 | 2019-2026 | RAM | 1500 | 5.7 ft | 269.40 lbs | 259.04 lbs |
| 70200022 | 70100022 | 2009-2026 | RAM | 2500/3500 | 6.4 ft | 294.09 lbs | 281.53 lbs |
Expedition Truck Cap Frequently Asked Questions
Learn more about the Expedition Truck Cap, including installation, load capacity, rooftop tent compatibility, MOLLE storage panels, weather sealing, lockable access doors, marine-grade stainless steel construction, overlanding applications, and truck cap accessories.
Why Choose The Expedition Truck Cap For Overlanding?
The Expedition Truck Cap is engineered specifically for overlanding and adventure travel. Constructed from marine-grade stainless steel, it provides exceptional durability, corrosion resistance, and long-term reliability in demanding environments. Features such as lockable gullwing access doors, integrated MOLLE storage panels, rooftop tent compatibility, and weather-resistant seals make it an ideal solution for camping, off-road exploration, and expedition vehicle builds. The modular design allows users to customize their setup for work, recreation, or extended travel.
What Makes The OVS Expedition Truck Cap Different From Other Truck Caps?
Unlike traditional fiberglass or aluminum truck caps, the OVS Expedition Truck Cap is built from marine-grade stainless steel for increased strength and durability. It features lockable gullwing side access doors, integrated MOLLE storage systems, modular accessory mounting options, rooftop tent compatibility, and weather-resistant construction. These features make it a versatile solution for overlanding, work trucks, camping, and off-road adventures.
What Is Included to Seal the Expedition Truck Cap to Prevent Water and Dust Ingress?
We include a 3M single-bulb seal designed to be installed along the perimeter of the bed rails and bulkhead. This seal helps reduce the entry of water and dust into the truck bed. The rear hatch is also equipped with its own bulb seal, which compresses against the top of the tailgate when closed to improve sealing. Additionally, we provide two pieces of butyl tape that can be applied at the bulkhead rail. These are specifically intended for the step-down area between the side plastic bed rail and the bulkhead, helping further minimize potential water and dust intrusion. Please note that no truck bed can be completely waterproof or airtight. While these sealing components significantly reduce exposure, some minimal water intrusion may still occur. The most common area for this is typically around the tailgate perimeter.
Where is the 3rd Brake Light on my Jeep Gladiator Application?
The Expedition Cap for the Jeep Gladiator does not include an additional third brake light, since the vehicle already features a factory-mounted third brake light on the tailgate.
Are the Roof Rails Compatible with Other Aftermarket Crossbars?
The included roof rails are specifically designed to work with Overland Vehicle Systems (OVS) optional crossbars. They feature a 19mm T-slot channel, allowing compatibility with a variety of aftermarket crossbar and mounting systems. We are currently in the process of testing additional aftermarket crossbars and will update our installation instructions with a list of confirmed compatible systems as testing is completed.
Does the Expedition Truck Cap Glass Closest to the Cab Have a Slider or Drop-Down Option?
The current design includes a fixed rear window and does not offer drop-down or pass-through access to the cab.
Can the Expedition Truck Cap be Locked or Opened From the Inside?
The Expedition Truck Cap cannot be opened or locked from inside the truck bed at this time. We are currently developing internal latch options that will allow the cap to be opened from the inside; however, this feature is not yet available.
Does the Expedition Truck Cap have a Vent?
The Expedition truck cap features a fixed vent located on the panel closest to the cab. Depending on the specific model, the vent may be positioned either above or below the window. This vent is designed to promote airflow and circulation, helping to reduce condensation inside the topper. It also allows air to escape when closing the panels, improving ease of operation and overall functionality.
Is there Any Drilling Required to Install the Expedition Truck Cap?
The only drilling required for the Expedition is a single hole for the Tacoma wiring installation.
What is the Load Carrying Weight Limit for the Expedition Truck Cap?
When paired with Overland Vehicle Systems (OVS) optional crossbars, the roof system supports up to 325 lbs of dynamic weight (while driving) and 750 lbs of static weight (when stationary).
How Much Weight Do the Door Panels Hold?
The Expedition Truck Cap side access doors are designed to support approximately 15 lbs of mounted accessories. This allows MOLLE-compatible storage panels, recovery gear, first aid kits, and trail essentials to be securely mounted while maintaining proper gas strut operation.
Can you install side door or side frame MOLLE panels on Expedition Pro+?
The under-side door panels and side frame panels are not compatible with the Expedition Pro+ version. This is because the door already includes an integrated MOLLE panel, and the available mounting channels only have a single row, which prevents additional panels from being installed. For the side frame area, there is approximately 1 inch of clearance between the window MOLLE panel and the frame, which is insufficient for proper panel installation. To install these panels, the existing window MOLLE panel would need to be removed.
-
- 70200001:
- 2016 - 2023 Toyota Tacoma 5' Bed
-
- 70200002:
- 2022-2026 Toyota Tundra 5.5' Bed
-
- 70200003:
- 2020 - 2026 Jeep Gladiator 5' Bed
-
- 70200004:
- 2021 - 2026 Ford F-150 5.5' Bed
-
- 70200005:
- 2015 - 2022 GM Colorado 5' Bed
-
- 70200006:
- 2019 - 2023 Ford Ranger 5' Bed
-
- 70200007:
- 2019 - 2026 Ram 1500 5.7' Bed
-
- 70200008:
- 2019 - 2026 GM 1500 5.8' Bed
-
- 70200009:
- 2023 - 2026 Ford F-250 / F-350 6.8' Bed
-
- 70200020:
- 2017 - 2022 Ford F-250 / F-350 6.8' Bed
-
- 70200021:
- 2007 - 2021 Toyota Tundra 5.5' Bed
-
- 70200022:
- 2009 - 2026 Ram 2500 / 3500 6.4' Bed
-
- 70200023:
- 2023 - 2026 GM Colorado / Canyon 5' Bed
-
- 70200024:
- 2024 - 2026 Ford Ranger 5' Bed
-
- 70200025:
- 2024 - 2026 Toyota Tacoma 5' Bed
-
- 70200027:
- 2021 - 2026 Ford F-150 6.5' Bed
-
- 70200028:
- 2024 - 2026 Toyota Tacoma 6' Bed
-
- 70200031:
- 2022 - 2026 Ford Maverick 4.5' Bed
-
- Shipping Weight:
- 250.00 LBS
-
- Shipping Width:
- (in)
-
- Warranty
- Overland Vehicle Systems Expedition Pro+ - Truck Caps come with an industry best Limited Lifetime Warranty. Overland Vehicle Systems warranty includes coverage for products with manufacturer defects in materials and workmanship.
-
- Availability
- Free LTL Shipping utilizing a Shipping carrier with Lift Gate on their delivery truck. Usually ships within 24 hours.
